132kw Power Hammer Crusher Machine for Clay Brick Making Plant with 55-70m3/hr Capacity and 212018201500mm Size

Large Image : 132kw Power Hammer Crusher Machine for Clay Brick Making Plant with 55-70m3/hr Capacity and 2120*1820*1500mm Size

Product Details:

Place of Origin:	CHINA
Brand Name:	BBT
Certification:	ISO9001
Model Number:	HC

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	USD 13000-16000/set
Packaging Details:	hamm mill crusher by common packaging
Delivery Time:	10-15days
Payment Terms:	L/C, T/T
Supply Ability:	10 set per month

Contact Now

132kw Power Hammer Crusher Machine for Clay Brick Making Plant with 55-70m3/hr Capacity and 212018201500mm Size

Description

Item:	Hammer Crusher Big Capacity Hammer Rolling Crushing Machinery For Clay Brick Making Plant	Capacity:	55-70m3/hr
Power:	132kw	Size:	212018201500mm
Weight:	7000kg	Material:	Clay, Mud, Soil,fly Ash
Brick Type:	Solid /hollow	Output Size:	5~8mm
Highlight:	Clay Brick Plant Roller Crusher Machine , Clay Brick Making Hammer Crusher , 132kw Hammer Roller Crusher Machine

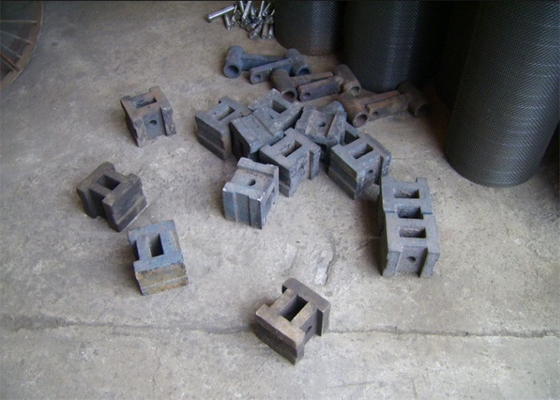

Hammer Roller Crusher Machine Spare Parts for Clay Brick Making Plant (132kw)

BBT full automatic clay brick production line machine hammer mill. Hammer crusher with big capacity hammer rolling crushing machinery for clay brick making plants.

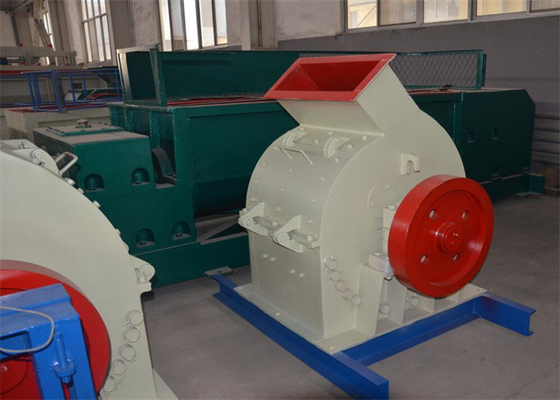

Hammer Crusher Overview

This machine serves as the raw material crushing equipment in brick production lines. It's suitable for medium and fine crushing of brittle materials with moisture content below 12%.

Operation Principle

The rotor rotates at high speed driven by the motor. Materials entering the action zone are repeatedly crushed through impact with the plate hammer and counterattack device until reaching the desired size, then discharged from the machine's lower part.

Key Features

Large crushing ratio with simple structure
High production capacity with uniform granularity
Convenient and fast maintenance
Large inlet and outlet with high crushing chamber
High chromium alloy hammer head for impact resistance
Low abrasion of machine parts with high comprehensive benefit

Technical Parameters

Specification Model	Capacity (m³/hr)	Power Requirement (kw)	Material Granularity (mm)	Exterior Dimension (mm)
HC800B	18-26	Y4-55	0～5	1400×1050×1400
HC1000B	23-36	Y4-75	0～5	1400×1750×1880
HC1100B	38-52	Y4-90	0～5	1900×1630×1880
HC1200B	48-62	Y4-132	0～8	2300×2420×2170

Tag:

Contact Person: Ms. Pan

Tel: 86 177 9142 2086
