High Efficiency GS700B GS800B GS1000B Double Roller Crusher Machine for Mining and Clay Brick Crushing

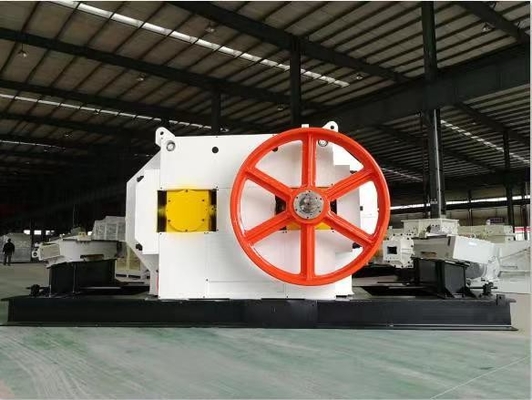

Large Image : High Efficiency GS700B GS800B GS1000B Double Roller Crusher Machine for Mining and Clay Brick Crushing

Product Details:

Place of Origin:	CHINA
Brand Name:	BBT
Certification:	ISO9001
Model Number:	GS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	0
Packaging Details:	fine grinder machine by container sea shipment
Delivery Time:	10-15days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets

Contact Now

High Efficiency GS700B GS800B GS1000B Double Roller Crusher Machine for Mining and Clay Brick Crushing

Description

Item:	Double Roller Clay Bricks Crusher Machine, Rock Stone Crusher Price	Material:	Clay, Mud
Type:	Roller Crusher	Application:	Mining ,crusher
Motor Type:	AC Motor
Highlight:	Mining Clay Bricks Crusher Machine , Rock Stone Clay Bricks Crusher Machine , High Efficiency Clay Bricks Crusher Machine

Mining Double Roller Clay Bricks Crusher Machine with Rock Stone Crusher High Efficiency

Double roller Clay bricks crusher machine, rock stone crusher price

Working Principle

Driven by electromotor via reducer, two tooth rollers rotate inward synchronously in opposite direction
Material dropping from the inlet to crushing chamber
Classified by the tooth roller with tooth
The massive materials would be crushed, cut, and then discharged in the discharging opening

Clay Brick Fine Crusher Machine Technical Parameters

Specification Model	Capacity (m³/hr)	Power Requirement (kw)	Material Granularity (mm)	Exterior Dimension (mm)
GS700B	13-26	Y6-18.5+18.5	≤3	2940×1430×1440
GS800B	23-37	Y6-22+22	≤3	3150×1700×1520
GS1000B	33-42	Y6-37+37	≤3	5600×1850×1750
GS800M	30-40	Y6-22+22	≤3	31500×1700×1520
GS700M	15-25	Y6-15+15	≤3	1940×1430×1440

Tag:

Mill Roll Crusher Machine,

Fine Roller Crusher Machine,

Clay Brick Roller Crusher Machine
