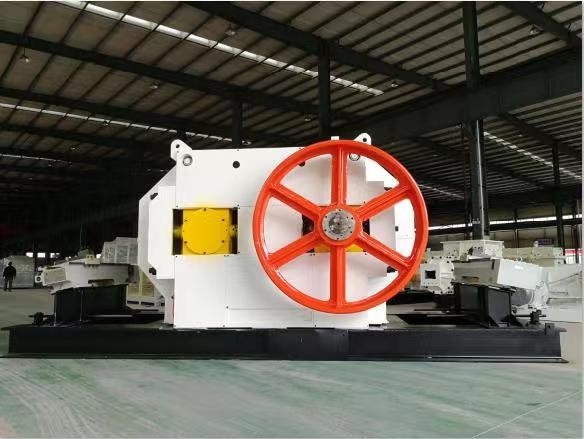

Mining Double Roller Clay Bricks Crusher Machine with Rock Stone Crusher High Efficiency

Large Image : Mining Double Roller Clay Bricks Crusher Machine with Rock Stone Crusher High Efficiency

Product Details:

Place of Origin:	CHINA
Brand Name:	BBT
Certification:	ISO9001
Model Number:	GS

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	0
Packaging Details:	fine grinder machine by container sea shipment
Delivery Time:	10-15days
Payment Terms:	L/C, T/T
Supply Ability:	10 sets

Contact Now

Mining Double Roller Clay Bricks Crusher Machine with Rock Stone Crusher High Efficiency

Description

Item:	Double Roller Clay Bricks Crusher Machine, Rock Stone Crusher Price	Material:	Clay, Mud
Type:	Roller Crusher	Application:	Mining ,crusher
Motor Type:	AC Motor
Highlight:	Mining Clay Bricks Crusher Machine , Rock Stone Clay Bricks Crusher Machine , High Efficiency Clay Bricks Crusher Machine

Double roller Clay bricks crusher machine, rock stone crusher price

Mining Double Roller Clay Bricks Crusher Machine with Rock Stone Crusher High Efficiency 0

Working principle

Drived by electromotor via reducer, two toothroller rotate inward synchronously in opposite direction;

Material dropping from the inlet to crushing chamber;

Classified by the tooth roller with tooth;

The massive materials would be crushed,cut, and then discharged in the discharging openin

Mining Double Roller Clay Bricks Crusher Machine with Rock Stone Crusher High Efficiency 1

Clay brick fine crusher machine of technical parameters:

Specification Model	Capacity (m³/hr)	Power Requirement (kw)	Material Granularity(mm)	Exterior Dimension (mm)
GS700B	13-26	Y6-18.5+18.5	≤3	2940×1430×1440
GS800B	23-37	Y6-22+22	≤3	3150×1700×1520
GS1000B	33-42	Y6-37+37	≤3	5600×1850×1750
GS800M	30-40	Y6-22+22	≤3	31500×1700×1520
GS700M	15-25	Y6-15+15	≤3	1940×1430×1440
