High Capacity Customized Production Clay Brick Box Feeder For Belt Feeding Speed Of 5.2m/min In Brick Making

Customized production clay brick box feeder with large capacity brick making factory box feeding machine

Clay brick box feeder machine

There are two types of feeder for you choosing according to the different type of raw material:

1. Chain plate step type belt feeder: It suits the hard material, such as shale, coal gangue and etc...

2. Belt type feeder: it suits the soft material, such as clay, mud, soil and fly ash.

Clay Brick Box Feeder of Key Parts:

1. Chain Plate: Using 16 Mn high strength low alloy structural steel, with double circular arc plate, effectively prevent leakage of material.

It has the advantages of high strength, high toughness, wear resistance, good comprehensive performance, long service life and wide application range.

2. The Chain : It is using loading-bearing and traction separately structure, can improve the ability of plate feeding machine loading capacity .

3. Chain wheel: Machine material is not lower than that of ZG310-570, tooth surface adopt to quenching treatment and depth up to 2-2.5 mm, the hardness can reach HRC44-52.

4. Chain shaft: Using 45# steel , adopt thermal refining processing .

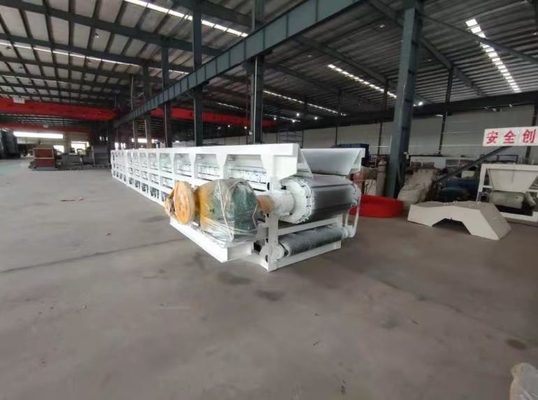

Steel type Clay brick box feeder for clay brick making line

Clay brick box feeder technical parameters:

Customized production clay brick box feeder with large capacity brick making factory box feeding machine
