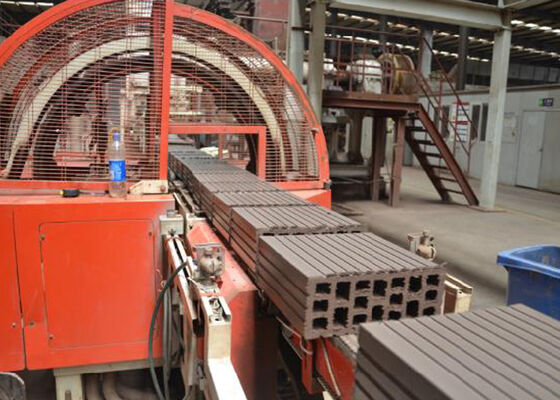

Automatic Brick Cutting Machine Strip & Blank Cutter for Brick Factory
Adobe bricks cutter piece red block auto cutting machine

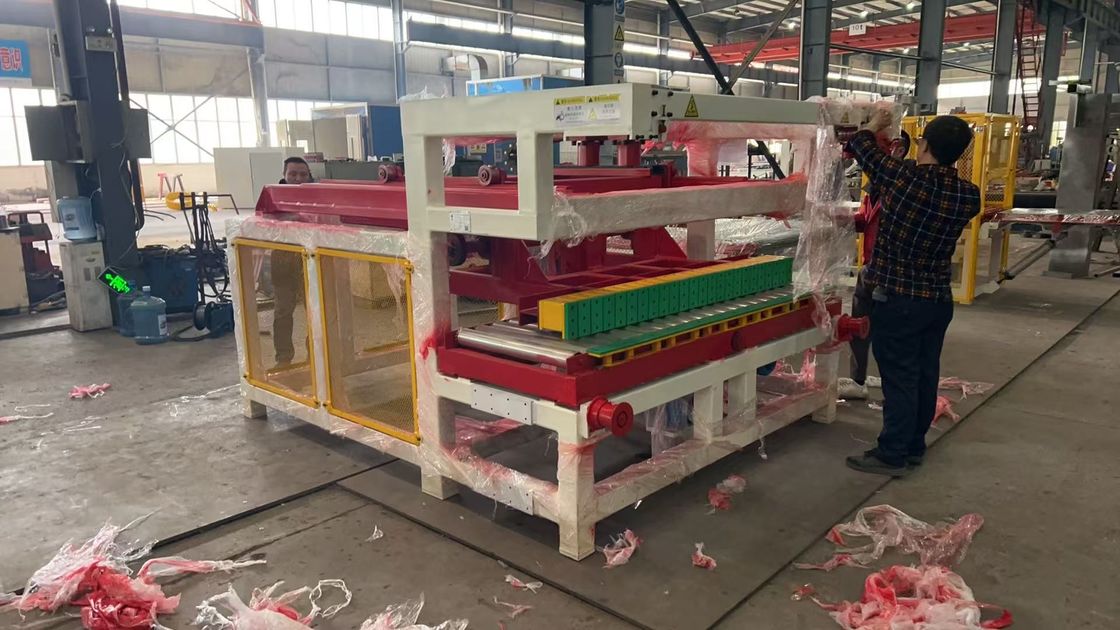

Auto Brick Cutter
This auto brick cutter features a hard stainless steel platform that is highly wear-resistant against friction from brick columns. It offers a long service life, less mud adhesion, and up to 30% lower oil consumption. The platform is easy to replace when worn, avoiding costly full-machine scrap. It delivers vertical, clean cut surfaces with no brick waste, supported by fully automatic, program-controlled operation for high efficiency.
Equipped with a dedicated anti-deviation system, the machine requires no manual adjustment during operation. Its stainless steel rollers automatically position accurately to prevent material waste. Compared with standard brick cutters, this model reduces oil usage by 70%–100%.
The pusher plate is also constructed from stainless steel, providing excellent wear resistance and a service life three times longer than ordinary versions. The machine runs fully automatically without manual intervention, saving labor and improving productivity. With a maximum pushing frequency of 41 strokes per minute, it can efficiently cut double columns and tall blocks.
Technological Parameters:
| Cutting Width |
Cutting Height |
Max. Cutting Frequency |
Compressed Air Pressure |
Cutting Length |
Power Capacity |
| 290mm |
250mm |
20times/min |
0.6-0.8MPa |
1000-1280mm |
7.5kw+0.55kw |
High Efficiency Automatic Brick Cutting Machine for Brick Making Plant
Adobe bricks cutter piece red block auto cutting machine
We also have other complete sets of automated clay brick making production line equipment to recommend to you:
BBT supply following clay brick production line machinery and equipment :
TCNL series of Chain full steel type box feeder
TWGD series of double shaft mixer
GS series of roller crusher
TRA series of double tooth roller crusher
TWJH series of front grid extruding mixer
TWPM series of wet pan mill
QTQG series of cutter
EV series of vacuum extruder
Robot setting machine
Brick machine spare parts
BBT provide full automatic clay brick making project design, construction and technical supporting.
