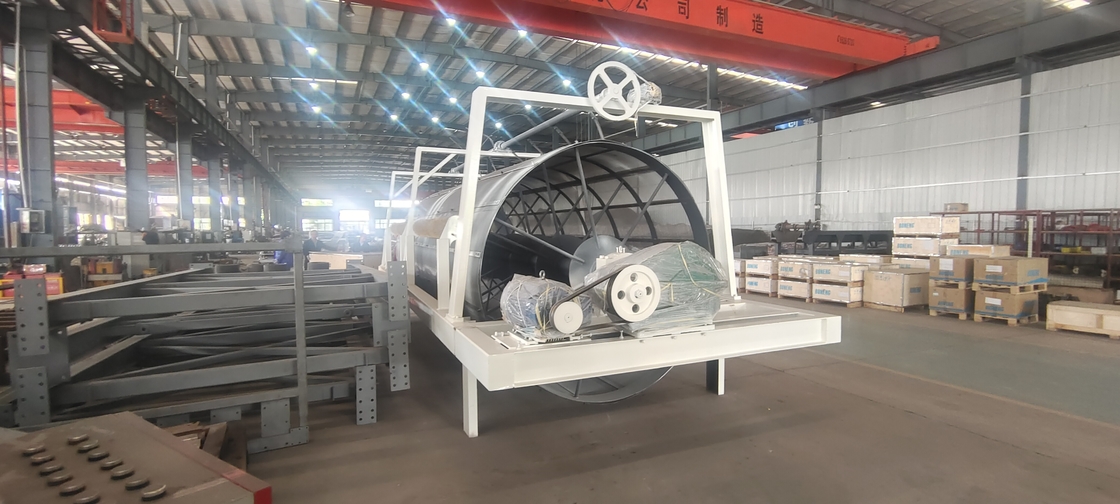

Rotary drum screening equipment for clay brick making factory

Rotary drum screening equipment for clay brick making factory

This machine is a raw material screening equipment for brick production line equipment

The equipment adopts the rolling conveying principle, the friction coefficient is small, the wear is light, the screen hole is not easy to plug, when the material enters the drum device, due to the tilt and rotation of the drum device, the material on the screen surface is turned over and rolled, so that the qualified material (under the screen product) is discharged through the bottom of the drum at the back end of the discharge port, the unqualified material (on the screen product) is discharged through the discharge port at the tail of the drum. Due to the material in the roller turning, rolling, so that the material stuck in the screen can be ejected, the belt beating device further to prevent the screen plugging;​​

The equipment is suitable for clay, shale and other as the main raw materials

The roller support adopts the whole through shaft structure, stable operation, no vibration, low noise, safe and reliable operation, the use of deceleration transmission, high transmission efficiency, small power, low energy consumption, energy saving effect is obvious, simple structure, easy maintenance.

Technical parameters:​

Capacity:30-70m3/h Screen size: 8 items (can be customized according to customer needs) Rolling screen speed: 16r/min

Drum diameter: 1800

Power :Y160m-6/7.5kw

With reducer: JZQ400-31.5-2Z i=31.5

With triangle belt :B-1800
