New Type Vacuum Extruder Clay Brick Making Full Automatic Clay Brick Making Machinery Vacuum Extruder
New Type Automatic Vacuum Extruder for Clay Brick Making
This vacuum extruder is the key molding equipment for clay brick production lines, specially used for continuous extrusion of wet clay.
It produces smooth, dense mud bars with high quality and large output. The machine features stable operation, high reliability and easy operation.
It can manufacture solid bricks, hollow bricks, porous bricks, hollow blocks and other brick types.
Consisting of an upper mixing section, a vacuum chamber and a lower extrusion section, the extruder body is welded with high-quality steel plates and treated to eliminate internal stress, ensuring high hardness, strength and durability.
With reasonable structure, robust body, low energy consumption, high efficiency and easy maintenance, it can also be equipped with a digital automatic monitoring system for stable and continuous operation.

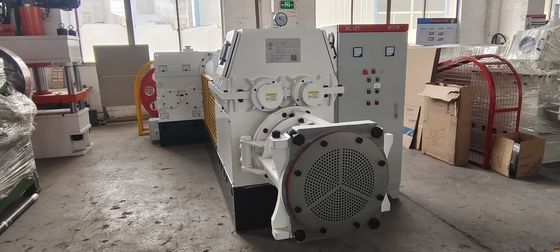

New type full automatic clay brick making machinery vacuum extruder
Vacuum extruder machine of technical parameters:
|
External dimension
|
Moulding moisture content
|
Motor capacity
|
Max extruding pressure
|
Capacity
|
Mixing area reamer diameter
|
Extrusion reamer diameter
|
Extrusion spindle speed
|
Mud pressing shaft speed
|
Mixing shaft material
|
|
5500*3000*1600mm
|
16%-21%
|
75.5kw
|
2.2mpa
|
3-10 t/hr
|
400mm
|
340mm |
11rpm/min
|
14.5rpm/min
|
40Cr
|
New type full automatic clay brick making machine vacuum extruder
Custom building is accepted.
BBT--Leading supplier for 2 times setting and firing in full automatic bricks production line
Designer, supplier and manufacturer for clay brick making machine and production line
Chain plate box feeder/refine roller crusher/wet pan mill /double shaft mixer/front grid extruder/Toother roller crusher/cutter /robot setting machine /automatic bricks loading and unloading system/running equipment for kiln cart
BBT supply full auto clay brick making line machinery and equipment
TCNL series of Chain full steel type box feeder
TWGD series of double shaft mixer
GS series of roller crusher
TRA series of double tooth roller crusher
TWJH series of front grid extruding mixer
TWPM series of wet pan mill
QTQG series of cutter
EV series of vacuum extruder
Robot setting machine
