Roll grinding machine clay bricks roller crusher machinery raw materials processing crush machinery

Roll grinding machine clay bricks roller crusher machinery raw materials processing crush machinery

High fine grinder roller crusher

Customized production of high fine roller crusher Brick roller crusher
It is suitable for fine crushing of various brick raw materials. The required particle composition can be obtained by fine crushing of brick-making raw materials, and the plasticity of brick-making raw materials can be improved.
This equipment is suitable for brick making raw materials with relative moisture content not higher than 25%.
The suitable crushing ratio is 1:4~6, and the maximum feed size should be controlled below 20 mm.
Excessive moisture content and feed size will have adverse effects on the normal operation of the equipment, and will reduce the production capacity of the equipment.

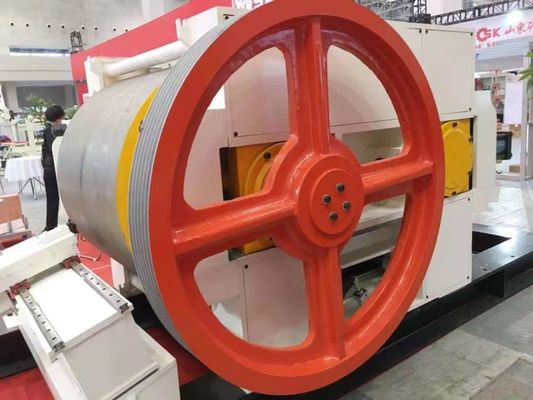

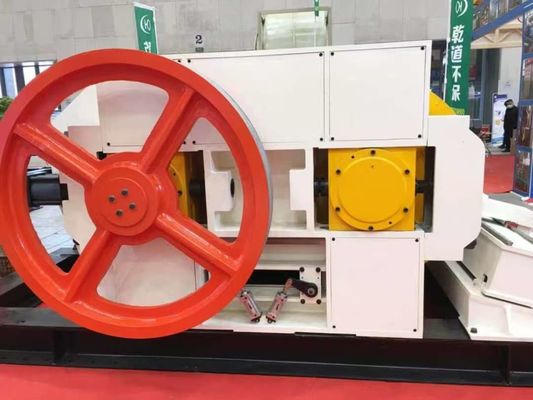

GS1080 model fine grinder Brick roller crusher
Capacity: 35-50m3/hr
Power: 55+75(90)kw
Weight: 14800kg

Dimension: 6200*4000*1700mm
key parts of roller :
Thickness of roll surface:≥140mm
Space of roll: ＜1.5
Hardness of roll: ≥53HRC
Size of roll(diameter * width): 1000*800mm
The roller ring and the hub adopt separate structure and are connected together by high-strength bolts to facilitate maintenance and replacement of the roller ring. Made of manganese steel, it has the characteristics of high wear resistance, high strength and easy repair.

XI’AN BBT CLAY TECHNOLOGIES CO.,LTD

BBT supply full automatic clay brick making line machinery and equipment

1.Raw material processing machinery

Belt conveyor, box feeder ,roller crusher, fine grinder, jaw crusher, wet pan mill , double shaft mixer , front grind extruding mixer …

2. Brick molding machine

Vacuum extruder , auto brick cutting machine system …

3. Automatic brick making system

Brick loading and unloading machine, automatic brick making system, brick stacking machine , robot brick setting machine , brick packaging machine …

4. Brick dryer and kiln equipment

full automatic tunnel kiln firing combustion system , kiln equipment …

5. Full automatic brick making project design and construction technical supporting in different country .

Auto brick tunnel kiln project , tunnel dryer , single layer chamber dryer ...

XI’AN BBT CLAY TECHNOLOGIES CO.,LTD

Wechat: claybbt
My whatsapp: +86 176 2908 6758

Mail address:info@claybbt.com
