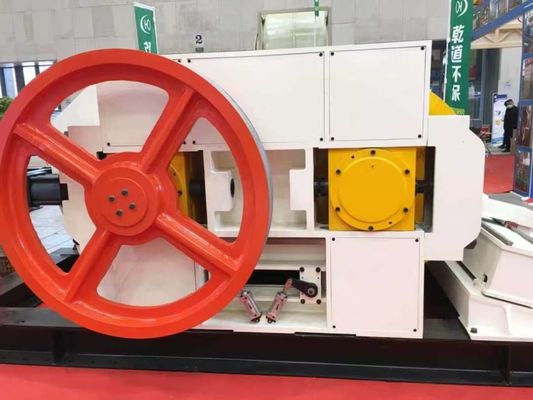

Automatic Roller Crusher Machine with 400mm Roller Diameter and 500mm Feeding Granularity for Clay Brick Raw Material Processing
Automatic Roller Crusher Machine with 400mm Roller Diameter and 500mm Feeding Granularity for Clay Brick Raw Material Processing
Basic Properties
Place of Origin:
China
Brand Name:
BBT
Certification:
ISO9001
Model Number:
GS1080
Trading Properties
Minimum Order Quantity:
1 set
Price:
16000USD
Payment Terms:
T/T
Supply Ability:
5 sets per month
Product Summary
Roll Grinding Machine Clay Bricks Roller Crusher Machinery High Fine Grinder Roller Crusher Customized production of high fine roller crusher for brick manufacturing. This equipment is designed for fine crushing of various brick raw materials to achieve optimal particle composition and improve ...
Product Custom Attributes
Highlight
clay bricks roller crusher machine
,raw materials roller crusher machinery
,roll grinding crusher for bricks
Features:
High Crushing Efficiency, Low Energy Consumption, Adjustable Discharging Size, Easy Maintenance, Etc.
Material Feeding Size:
200mm
Weight:
7000kg
Required Power:
110+75
Automatic:
Yes
Roller Diameter:
400mm
Keyword:
Mine Double Roll Crusher
Hardness Of Roll:
≥57HRC
Feeding Granularity:
500mm
Materials:
Steel
Brick Raw Material:
Clay Soil Mud Shale
Exterior Dimension:
1650*1748*1520mm
Feature:
Low Power Consumption
Discharging Size:
2-10mm
Roller Length:
250mm
Product Description
Detailed Specifications & Features
Roll Grinding Machine Clay Bricks Roller Crusher Machinery
High Fine Grinder Roller Crusher
Customized production of high fine roller crusher for brick manufacturing. This equipment is designed for fine crushing of various brick raw materials to achieve optimal particle composition and improve material plasticity.
Technical Specifications
- Suitable for brick-making raw materials with moisture content ≤25%
- Recommended crushing ratio: 1:4-6
- Maximum feed size: ≤20mm
- Excessive moisture or feed size reduces equipment capacity
GS1080 Model Specifications
| Capacity | 35-50m³/hr |
|---|---|
| Power | 55+75(90)kw |
| Weight | 14800kg |
| Dimensions | 6200×4000×1700mm |
Roller Specifications
| Roll Surface Thickness | ≥140mm |
|---|---|
| Roll Space | <1.5mm |
| Roll Hardness | ≥53HRC |
| Roll Dimensions | 1000×800mm (diameter × width) |
The roller features a separate ring and hub structure connected by high-strength bolts for easy maintenance. Made of manganese steel for exceptional wear resistance, strength, and repairability.
Complete Brick Production Solutions
BBT Clay Technologies Product Range
- Raw Material Processing: Belt conveyors, box feeders, roller crushers, fine grinders, jaw crushers, wet pan mills, mixers
- Brick Molding: Vacuum extruders, automatic brick cutting systems
- Automation: Brick loading/unloading systems, stacking machines, robotic setting machines
- Drying & Firing: Tunnel kilns, combustion systems, dryer equipment
- Complete Projects: Turnkey brick plant design and construction
XI'AN BBT CLAY TECHNOLOGIES CO.,LTD
WeChat: claybbt
WhatsApp: +86 176 2908 6758
Email: info@claybbt.com
