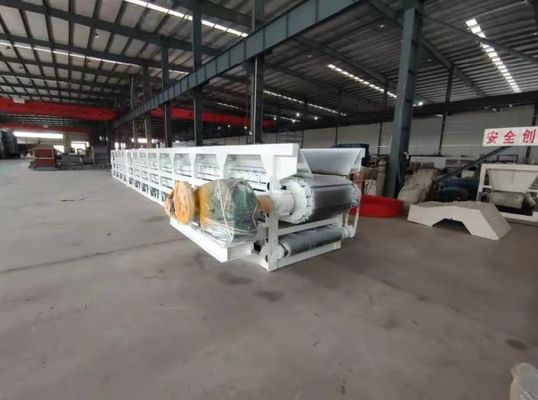

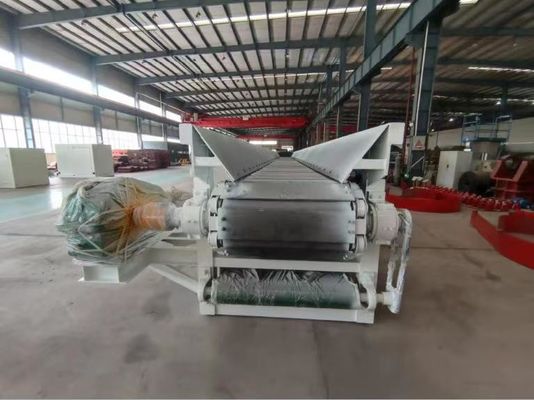

Chain Plate Box Feeder with 4500mm Center Distance 1175mm Chain Track and 6200kg Weight for Clay Brick Raw Materials
Chain Plate Box Feeder with 4500mm Center Distance 1175mm Chain Track and 6200kg Weight for Clay Brick Raw Materials
Basic Properties
Place of Origin:
China
Brand Name:
BBT
Certification:
ISO9001
Model Number:
TCNL
Trading Properties
Minimum Order Quantity:
1
Price:
8900USD
Payment Terms:
T/T
Supply Ability:
10 sets per month
Product Summary
TCNL Model Chain Steel Type Box Feeder The TCNL4.5/1000 plate feeder is a high-performance feeding equipment developed through advanced international technology absorption. This machine features rational structure, stable operation, low failure rate, and easy maintenance. Widely used in mining, ...
Product Custom Attributes
Highlight
clay brick box feeder machine
,chain plate box feeder equipment
,box feeding equipment for bricks
Belt Width:
800 Mm
Spindle Speed:
34-38 R/m
Testing Before Shipment:
Available
Colour:
Plane Grey
Method:
Belt Type Of Box Feeder
Application:
Feeding Clay Bricks Raw Materials
Custom Buidling:
Accepted
Raw Material:
Clay Materials
Bricks:
Solid, Hollow
Belt Size:
800 Mm
Type:
Plate Steel Type Box Feeder Machine
Feeding Speed:
Adjustable
Chain Plate Width:
800mm
Suitable For:
Cardboard Boxes, Corrugated Boxes, Paper Boxes
Custom Buiding:
Accepted
Product Description
Detailed Specifications & Features
TCNL Model Chain Steel Type Box Feeder
The TCNL4.5/1000 plate feeder is a high-performance feeding equipment developed through advanced international technology absorption. This machine features rational structure, stable operation, low failure rate, and easy maintenance. Widely used in mining, building materials, and metallurgy industries for uniform feeding and batching of sharp block materials.
Main Performance Specifications
| Specification | Value |
|---|---|
| Production Capacity | 10-50 m³/h |
| Center Distance Between Sprockets | 4500 mm |
| Chain Track Center Distance | 1175 mm |
| Weight | 6200 kg |
| Dimensions (L×W×H) | 6015×2500×1750 mm |
| Power | 4 kW |
Optional Features
- Transmission direction selection: right drive/left drive
- Optional mud stick configuration
Working Principle & Structural Characteristics
The plate feeder operates through motor-driven transmission that powers the driving shaft via reducer. Sprockets rotate to move chains forward, with chain plates transporting materials. The adjustable gate controls discharge volume, while the scraper cleans residual materials. The optional mud stick ensures smoother material flow through motor-driven reduction.
Key Components
- Transmission system: Motor, reducer, driving/driven shafts, sprockets, chain plates
- Supporting devices: Silo gate, scraper, mud stick, rack, silo, guards
Complete Clay Brick Production Line Equipment
BBT supplies full automatic clay brick making machinery including:
- TCNL series Chain full steel type box feeders
- TWGD series double shaft mixers
- GS series roller crushers
- TRA series double tooth roller crushers
- TWJH series front grid extruding mixers
- TWPM series wet pan mills
- QTQG series cutters
- EV series vacuum extruders
- Robot setting machines
- Brick machine spare parts
BBT provides complete clay brick production project design, construction, and technical support services.
