BBT Mineral Processing Equipment Brick Production Roll Crusher Machine

BBT Mineral Processing Equipment Brick Production Roll Crusher Machine
Basic Properties
Place of Origin: Chongqing, China
Brand Name: BBT
Model Number: SGB80*60
Trading Properties
Minimum Order Quantity: 1 set
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Tags:

Minerals Processing Equipment

Double Roller Minerals Processing Equipment

Double Roller Crusher Hammer Mill
Product Summary
SGB80*60 Ordinary Rolling Crusher Of Mineral Processing Machinery In Brick Production Line Code:IBS072-4701 Model:SGP80*60 This equipment carries on the refinement, the mixing treatment to the raw material, the main principle of work isthrough a pair of rollers rotating in the direction to crush ...
Product Custom Attributes
Highlight

BBT Mineral Processing Equipment

,

Roll Crusher BBT Mineral Processing Equipment

,

Brick Production BBT Mineral Processing Equipment

Condition:
New
After-sales Service Provided:
Online Support
Power(w):
18.5+22kw
Dimension(l*w*h):
3,100*1,300*1,200mm
Warranty:
1 Year
Diameter Of Roller:
800 Mm
Width Of Roller:
600mm
Crushed Size:
≤5mm
Product Description
Detailed Specifications & Features

SGB80*60 Ordinary Rolling Crusher Of Mineral Processing Machinery In Brick Production Line



Code:IBS072-4701

Model:SGP80*60



This equipment carries on the refinement, the mixing treatment to the raw material, the main principle of work isthrough a pair of rollers rotating in the direction to crush bulk raw material into the granular rawmaterial below 5mm, so as to improve the plasticity and uniformity of raw materials. It plays an important role in improving the quality of various extruded and sintered brick products and flat tile products.





Key Parts



Roller



In order to ensure a better neutral and support strength, they are supported by adjustable rolling bearing. The moving roller adopts pressure spring to add force, and the crushing pressure can be adjusted according to different raw materials. When the hard object is stuck, the spring compression will not cause damage to the roller ring.Both sides of the fixed roller are equipped with screw adjusting devices to adjust the position after the size of the roller is reduced. The inside of the moving roller is equipped with a limit screw to ensure the adjustable roller clearance, and the operation is convenient and fast.



The roller ring and the hub adopt separate structure and are connected together by high-strength bolts to facilitate maintenance and replacement of the roller ring. Made of manganese steel, it has the characteristics of high wear resistance, high strength and easy repair.





Technical Parameters



No. Model SGP80*60
1

Diameter of roller

800 mm
2

Width of roller

600mm
3

Materials feeding size

≤30mm
4

Crushed size

≤5mm
5

Production capacity(roller space:1.2mm)

23-37m³/h
6

Power

18.5+22kw
7

Dimension

3,100*1,300*1,200mm
8

Weight

4,400kg

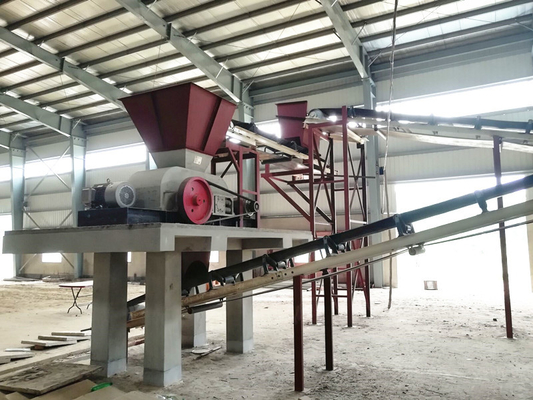

BBT Mineral Processing Equipment Brick Production Roll Crusher Machine 0

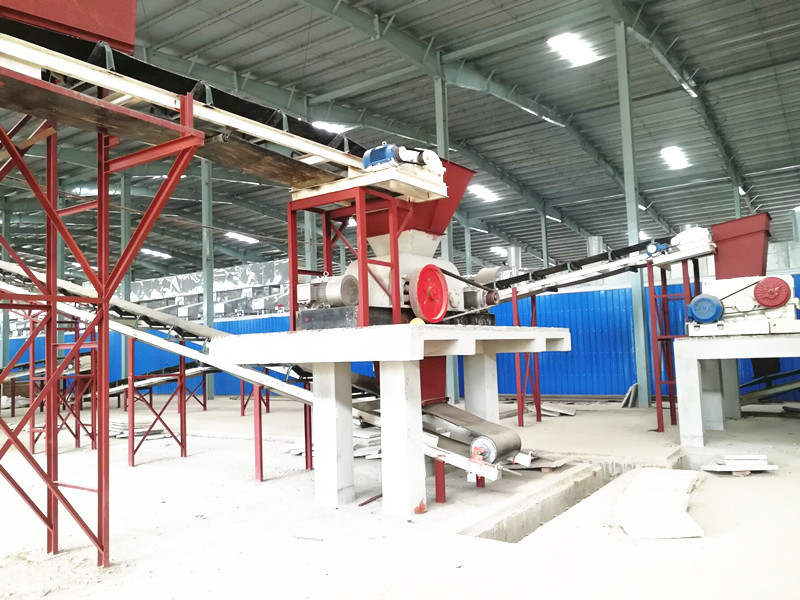

BBT Mineral Processing Equipment Brick Production Roll Crusher Machine 1





Our service



Welcome to contact with BBT

BBT supply following machinery and project :

1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)

2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )

3. Brick kiln project ( hoffman kiln, tunnel kiln )

4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)

5. Kiln firing system ( coal / gas /oil combustion system ,control system )

6. Whole brick making project design and construction .
