Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets

Large Image : Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO9001
Model Number:	4.9m tunnel kiln

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Price is negotiable as per quotation
Packaging Details:	clay brick tunnel kiln of equipemnt by container sea shipment
Delivery Time:	30-60days
Payment Terms:	L/C, T/T
Supply Ability:	5 sets per year

Contact Now

Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets

Description

Description:	Customized Tunnel Kiln Brick Factory Process Design For Iran, Iraq And Afghanistan Markets	Firing Cycle:	52hr
Firing Yield:	98%	Fuel For Brick Firing:	Gas, Oil ,coal ...
Tunnel Kiln Technical Data:	4.6m,6.9m,7.2m,9.6	Design:	China BBT
Highlight:	Red brick clay brick tunnel kiln , Full automatic clay brick tunnel kiln , Bangladesh India clay brick tunnel kiln

Full-Automatic Sintered Brick Production Line & Tunnel Kiln Engineering Design for Middle East

Auto oil fired brick kiln clay brick tunnel kiln in red brick production line

Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets 0

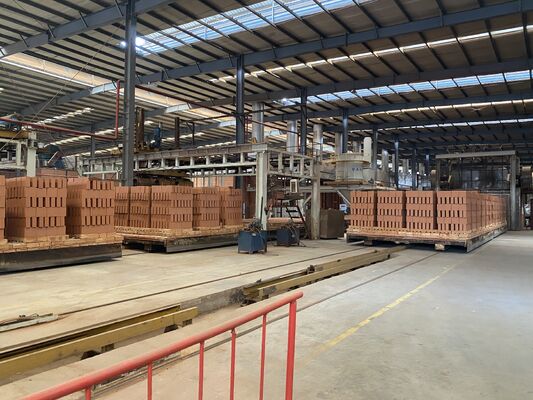

Clay Brick Tunnel Kiln

The tunnel kiln is equipped with a smoke exhaust system, circulating system, waste heat recovery system, cooling system and pressure balancing system.
It features large cross-section, high output, small temperature difference across the section and excellent thermal insulation performance.
In addition, an automatic kiln control system is adopted to maintain stable firing thermal parameters, thus ensuring high-quality sintering of bricks.

Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets 1

Automatic Brick Factory Tunnel Kiln Project

This tunnel kiln is equipped with smoke exhaust system, recycling system, waste heat recovery system, cooling system and pressure balancing system.

It features large cross-section, high capacity, uniform temperature distribution and excellent heat insulation effect.

With an automatic control system, it maintains stable firing parameters and ensures consistent and high-quality brick production.

Tunnel Kiln Structure

The preheating zone and cooling zone (temperature below 200°C) are lined with red bricks.

The firing zone and the inner wall of the insulation zone are lined with clay refractory bricks, while clay insulating bricks are used in the insulation layer.

High-temperature refractory fiber felt (for areas above 600°C) or rock wool felt is used for filling, with red bricks for the external wall.

For the kiln roof:

Cast-in-place concrete slabs are used at the low-temperature sections on both sides.

Other parts adopt clay refractory panels suspended from H-beams.

A composite insulation layer consisting of high-aluminum cotton, refractory fiber felt, rock wool felt and rock wool board is installed on the refractory panels.

High-aluminum fiber and high-temperature binder are used to seal gaps between roof panels and coat the insulation layer, ensuring tight sealing and structural durability.

Automatic Clay Brick Plant with Tunnel Kiln Project Design for Iran, Iraq, Afghanistan

Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets 2

Tunnel Kiln with Natural Gas Combustion System

Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets 3

Coal-Fired Tunnel Kiln

Customized Red Clay Blocks Tunnel Kiln Brick Factory Process Design for Iran, Iraq and Afghanistan Markets 4

Clay brick tunnel kiln of technical parameters:

Specification Model	Numbers	Output Capacity (Pcs/day)	Land Covering Required	Outer Size (m)
Tunnel Kiln + Dryer	2.5m Section	50000	140×50m	110.8×4.3×2.34
	8 Channels			61×9.6×1.5
	3.6m Section	80000～100000	170×65m	134.2×5.4×3.6
	12 Channels			67.6×19.22×1.5
	4.6m Section	100000～120000	180×70m	143.5×6.4×3.33
	14Channels			65.5×25.24×3.285
	6.9m Section	150000～180000	200×120m	153.5×8.7×3.33
	20 Channels			65.5×25.24×3.285

BBT Provide of Full-Automatic Sintered Brick Production Line & Tunnel Kiln Engineering Design for Middle East
