Fireproofing Refractory Brick Material Hydraulic Pressure Clay Fired Bricks

Certification
China Xi'an BBT Clay Technologies Co., Ltd. certification
I'm Online Chat Now

Fireproofing Refractory Brick Material Hydraulic Pressure Clay Fired Bricks

Fireproofing Refractory Brick Material Hydraulic Pressure Clay Fired Bricks
Fireproofing Refractory Brick Material Hydraulic Pressure Clay Fired Bricks Fireproofing Refractory Brick Material Hydraulic Pressure Clay Fired Bricks Fireproofing Refractory Brick Material Hydraulic Pressure Clay Fired Bricks

Large Image :  Fireproofing Refractory Brick Material Hydraulic Pressure Clay Fired Bricks

Product Details:
Place of Origin: China
Brand Name: BBT
Certification: ISO9001:2008

Fireproofing Refractory Brick Material Hydraulic Pressure Clay Fired Bricks

Description
Condition: New Method: Hydraulic Pressure
Aplications: Bricks And Ceramics Factory Function: Fireproofing
Raw Material: Synthetic Material Clay Place Of Origin: China
Highlight:

Fireproofing Refractory Brick Material

,

ISO9001:2008 Refractory Brick Material

,

Hydraulic Pressure Clay Fired Bricks

Refractory Brick Material Fired Bricks In Clay Brick Plant And Auto Ceramics Plant





Products description of Refractory Materials Fired Bricks in Clay Brick Plant and Auto Ceramics Plant

Low thermal conductivity and anti-stripping brick, which is characterized by: synthetic low-conductivity and thermal-alkali-resistant raw materials, alumina fine powder, andalusite And bound clay as raw materials, mixed to make a mixed powder, and then added a binding agent to the mixed powder, pressed into shape, dried, and fired to obtain the low thermal conductivity anti-stripping brick.





Application of Refractory Materials Fired Bricks in Clay Brick Plant and Auto Ceramics Plant:Tunnel kiln;Cement Kilns :Safety zone, Pre-heating /Calcining zone in rotary kiln.



Features of Refractory Materials Fired Bricks in Clay Brick Plant and Auto Ceramics Plant : Outstanding resistance to alkali attack Excellent thermal-shock resistance Low thermal conductivity Decreasing the kiln shell load, the mechanical stress on the lining



Parameters of Refractory Materials Fired Bricks in Clay Brick Plant and Auto Ceramics Plant: Outstanding resistance to alkali attack Excellent thermal-shock resistance Low thermal conductivity Decreasing the kiln shell load, the mechanical stress on the lining





CHEMICAL COMPOSITION
SPEC TYPICAL
Al2O3


% ≤35 32-34
SiO2


%


62-64
Fe2O3


% ≤1.8 1.6
PHYSICAL PROPERTIES




SPEC TYPICAL
Thermal Shock Resistance TSR - in water at 1100 °C cycle ≥15 16
Refractoriness Under Load RUL (0.2MPa) °C ≥1310 1330
Thermal Expansion TE- 1000 °C %


0.6
Cold Crushing Strength CCS MPa ≥45 57
Thermal Conductivity TC - 700士25 °C W/m.K ≤1.5 1.5
Alkali Resistance 1100 °C*5h


First grade





Applications of Refractory Bricks in Clay Brick Plant Red Clay Brick Production Line Fired Bricks in Brick Making Plant.

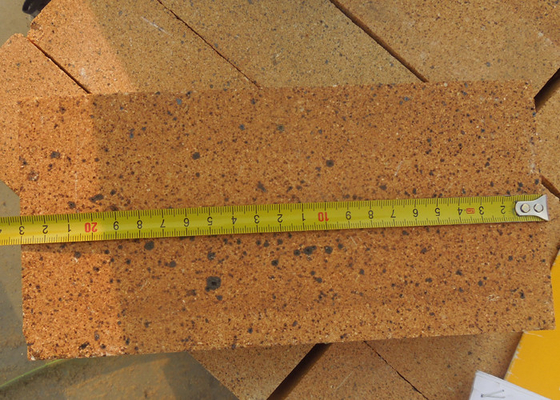

Fireproofing Refractory Brick Material Hydraulic Pressure Clay Fired Bricks 0

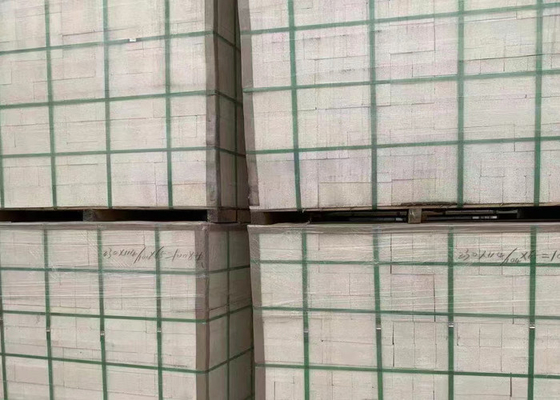

Fireproofing Refractory Brick Material Hydraulic Pressure Clay Fired Bricks 1
