Full automatic clay brick making project Tunnel kiln design and related operation equipment systems
Full automatic clay brick tunnel kiln project
Sintering bricks are produced by using clays as raw materials and adopting two-time setting and baking processes, that is Semi-stiff plastic extruding process; drying in the tunnel drying chamber using single layer process and baking in the tunnel kiln with natural gas.
Main equipments are plate feeder, primary roller crusher, fine pulverizing grinder, double shaft mixer, reversible belt conveyor, multi-buckets excavator, mixing and extruder, double stage vacuum extruding machine, automatic loading and unloading system, tunnel drying chamber, robot hand, tunnel kiln, de-hacking machine.
Technical point
Considering raw material's character according to our long period experience, any project must meet follow technical requirement:
1.The material should fully mix when processing, thus to ensure the molding of the green brick and drying uniformity.
2.The clay material should be fine treated, the biggest particles should be less than 2mm or so.
3.Molding moisture content must controls under 18%, strictly control the section before critical point when drying and drying cycle is not less than 36 hours.
Tunnel kiln can adopt coal /gas/oil as fuel for firing clay bricks.
We offer automated combustion systems for different types of fuels.
Brick tunnel kiln of technical parameters:
| Specification Model |
Numbers |
Output Capacity (Pcs/day) |
Land Covering Required |
Outer Size (m) |
| Tunnel Kiln + Dryer |
2.5m Section |
50000 |
140×50m |
110.8×4.3×2.34 |
| 8 Channels |
61×9.6×1.5 |
| 3.6m Section |
80000～100000 |
170×65m |
134.2×5.4×3.6 |
| 12 Channels |
67.6×19.22×1.5 |
| 4.6m Section |
100000～120000 |
180×70m |
143.5×6.4×3.33 |
| 14Channels |
65.5×25.24×3.285 |
| 6.9m Section |
150000～180000 |
200×120m |
153.5×8.7×3.33 |
| 20 Channels |
65.5×25.24×3.285 |

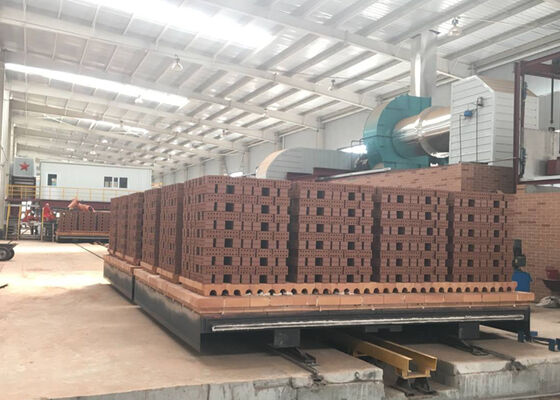

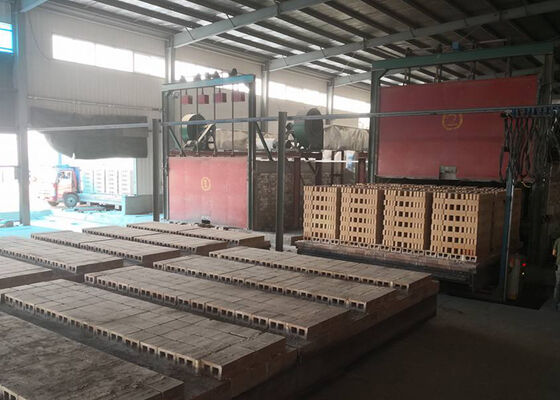

Under construction auto red clay brick tunnel kiln project in Customer's factory
We also have other complete sets of automated clay brick making production line equipment to recommend to you:
BBT supply following clay brick production line machinery and equipment :
TCNL series of Chain full steel type box feeder
TWGD series of double shaft mixer
GS series of roller crusher
TRA series of double tooth roller crusher
TWJH series of front grid extruding mixer
TWPM series of wet pan mill
QTQG series of cutter
EV series of vacuum extruder
Robot setting machine
Brick machine spare parts
BBT provide full automatic clay brick making project of dryer chamber /brick kiln design, construction and technical supporting.
