Hammer Mill Crusher Roller Crusher Machine For Auto Brick Making Factory
Auto Brick Making Hammer Mill Crusher
,Hammer Mill Roller Crusher Machine
,70T/h Hammer Mill Crusher
BBT full automatic clay brick production line machine hammer mill crusher roller crusher machine for auto brick making factory

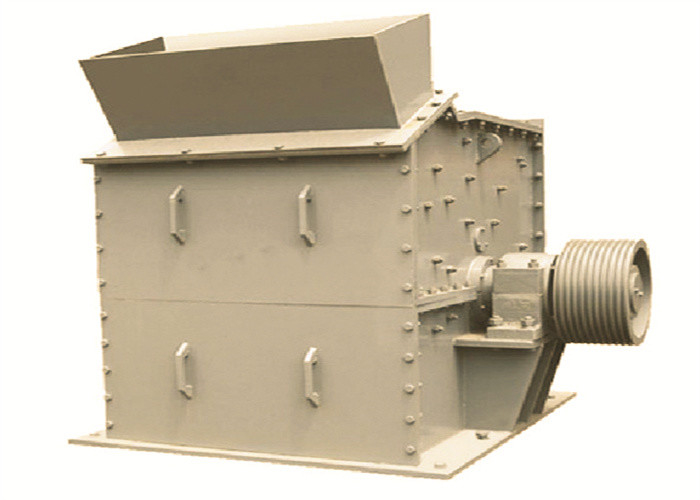

Hammer crusher machine
Hammer Crusher
This machine is the raw material crushing equipment of the brick production line.
The equipment is suitable for medium crushing and fine crushing , suitable for crushing brittle materials, and the moisture content of materials should be less than 10%.
The rotor rotates at a high speed driven by the motor. When the material enters the action zone of the plate hammer, the broken material is continuously thrown to the counterattack device installed above the rotor by the high-speed impact of the plate hammer. Then it bounces back from the backlash liner to the action zone of the plate hammer and is counterattacked again. The material is broken repeatedly from large to small in the crushing zone. Until the material is crushed to the desired size, it is discharged from the lower part of the machine.
This equipment has large crushing ratio, simple structure, large production capacity, uniform crushing granularity, convenient and fast maintenance, large inlet and outlet, high crushing chamber, high hardness of material, large size, strong rigidity of machine, large rotational inertia of rotor; The equipment has a high chromium alloy hammer head, which is impact resistant, abrasion resistant, high impact force, low abrasion of machine parts and high comprehensive benefit.
Hammer crusher machine of technical parameters:
| Specification Model | Capacity (m³/hr) | Power Requirement (kw) | Material Granularity(mm) | Exterior Dimension (mm) |
| HC800B | 18-26 | Y4-55 | 0～5 | 1400×1050×1400 |
| HC1000B | 23-36 | Y4-75 | 0～5 | 1400×1750×1880 |
| HC1100B | 38-52 | Y4-90 | 0～5 | 1900×1630×1880 |
| HC1200B | 48-62 | Y4-132 | 0～8 | 2300×2420×2170 |
Our main products include:
TCNL series full steel chain box feeder
TWGD series double shaft mixer
GS series roller crusher
TRA series double tooth roller crusher
TWJH series front grid extruding mixer
TWPM series wet pan mill
QTQG series cutter
EV series vacuum extruder
Robot setting machine
Spare parts for brick making machinery
We also offer one-stop solutions for automatic clay brick production projects, covering project design, construction, and comprehensive technical support.
