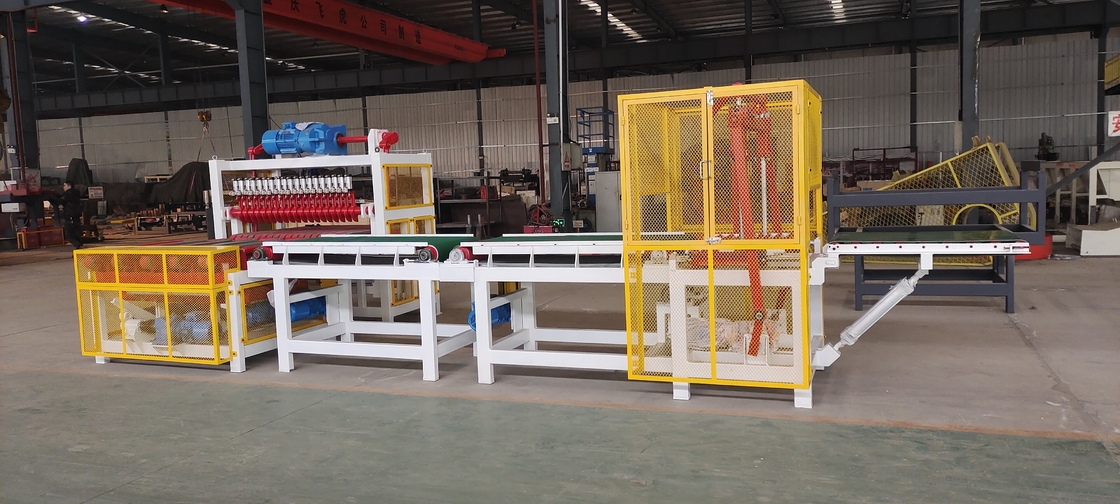

This machine is used for cutting the adobe strip from extruder according to the length requirement of adobe piece cutting machine to adobe section, and feed them into piece cutting machine, to meet different requirement of production technology, our company produces two kinds of different products: vertical section cutter, circular cutter . the machine may adjust the cutting strip length and cut the adobe strip automatically . the vertical cutter has the feature like vertical cutting, small stub, and high efficiency.

Full automatic red clay brick cutting cutter machine with excellent quality

Clay brick cutter

This machine is used for cutting the adobe strip from extruder according to the length requirement of adobe piece cutting machine to adobe section, and feed them into piece cutting machine, to meet different requirement of production technology, our company produces two kinds of different products: vertical section cutter, circular cutter . the machine may adjust the cutting strip length and cut the adobe strip automatically . the vertical cutter has the feature like vertical cutting, small stub, and high efficiency.

Structure and Working Principle

The ordinary cutting system is mainly consisting of pneumatic column cutter and light brick cutter.

The pneumatic column cutter is mainly consist if base frame assembly, motor assembly, arm assembly, cylinder assembly, portal frame assembly, guide-bar assembly and buffer. The machine is used for cutting the mud columns and delivering the brick columns to the brick cutter quickly.

The light brick cutter is mainly consist of base frame welding assembly, driving roller parts (electric motor, reducer, slide roller and etc.), shredding parts(inner/outer), power unit(electric motor, reducer, mantis arms, connecting rod, guide-bar, pushing head and etc.) , braking parts, guardrail welding and etc.

Working principle

Cutting brick columns:

It is achieved by ordinary pneumatic brick column cutter. When the extrude clay column being pushed to the portal frame and contact the resist roller, it is stopped by the resist roller. Meanwhile, the clay column push the pulley(clay column and pulley synchronization) to go forward to make the inductive switch react, the control program order the cutting cylinder start, the piston rod of cylinder push-out and drive the steel wire in the limb to cut the clay. After the clay cutting completion, the pulley igo forward continuously, the roller plant resister in portal frame is forced open by the block which installed at the both sides of machine body, the portal frame is opened automatically, the clay column is send away by the belt conveyor of faster roller. Meanwhile, the pulley is bringing back to the original place by repeat-vertebra and wait for the next cutting.

Brick cutting:

It is achieved by brick cutter. The clay column which sends by brick cutter will arrived the clay column locating guard plate through the table-board roller,after the optoelectronic switch detect the clay column, through the control program to make the separation cylinder start, and pull-out the separate leader, and connect the combined arm, the power of electromotor is reduced by reducer and spindle box, the crank rocker will bring the pusher to make reciprocal rectilinear motion, while the pusher move forward, the clay column will be pushed to the steel wire to achieve the brick cutting, while the pusher move back, the separate-leader will bring back to home position by return-tension, and then to separate the combined arm, cut-off the power(rotate speed), the pusher through the proper braking and return to position nearby the end-stop point(the position for next cutting ) through the inheritance, and then waiting for next cutting.
