Robot brick stacking setting machine system for red clay brick blocks

Robot Brick Stacking Setting Machine System For Red Clay Brick Blocks 0

BBT New model economical soil clay fried brick stacking machine

Robot Brick Stacking Setting Machine System For Red Clay Brick Blocks 1

Automatic stacking machine
The automatic blank stacking machine is mainly used for stacking the brick blanks sewn by the warp-knitting components on the blank conveying machine on the kiln car. The blank format can be determined according to user requirements. The working process is automatically controlled by PLC. The yard machine has a complete mechanical structure and electrical control system to ensure the stability and reliability of the yard.

 Robot Brick Stacking Setting Machine System For Red Clay Brick Blocks 2

Features of Automatic Stacking Machine:

1. The structure is reasonable and bears high reliability and convenient maintenance.

2. The horizontal transmission adopts synchronous toothed belt transmission, with linear guide rail pair, stable operation and high positioning accuracy.
3. The lifting system adopts hydraulic transmission system, sensor control, stable lifting action, and high positioning accuracy of brick stack layer and layer stacking.

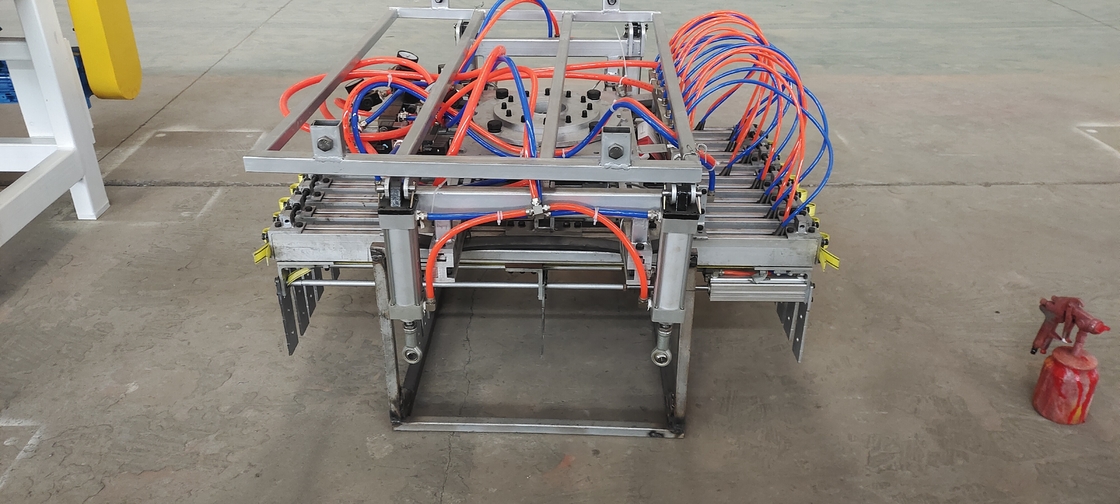

4. The palletizing gripper adopts a pair of linear guide rails, matched with an optimized cylinder, and has high grasping and positioning accuracy without brick falling.
5. Collect centralized control, PLC programming and touch screen control, simple and convenient operation, easy to adjust various operating systems.
Robot Brick Stacking Setting Machine System For Red Clay Brick Blocks 3

Technological Parameters

No. Item Parameters
1 Action form Vertical multiple joint
2 Degree of freedom 4
3 Load 500kg
4 Repeated positioning accuracy ±0.5mm
5 Actuation range S axis (Rotating) +180° ~ -180°
L axis (Lower Arm) +90° ~ -45°

U axis (Upper Arm)

)

 +15.5° ~ -120°
T axis (Wrist Rotation) +360° ~ -360°
6 Maximum speed S axis 1.48 rad/s (85°/s)
L axis 1.48 rad/s (85°/s)
U axis 1.48 rad/s (85°/s)
T axis 3.4 rad/s (195°/s)
7 The T-axis allows inertial torque 200kg·㎡
8 Robot weight 2300kg
9 Installation environment

Temperature



 0~45 ℃
10 A conventional model weight Humidity 20-80% RH (Non-condensate)
Vibration acceleration 4.9m/s2 (0.5G)
Others No flammable or corrosive gas or liquid

Do not splash water, oil, dust

Do not splash water, oil, dust





Do not splash water, oil, dust




No electrical noise source nearby
11 Power capacity

9.5kVa
