GS1412 Clay Brick Production Line Roller Crusher Raw Material Processing Equipment
GS1412 Clay Brick Production Line
,Clay Brick Production Line Roller Crusher
,Clay Brick Raw Material Processing Equipment
GS1412 roller crusher raw material processing equipment in clay brick production line

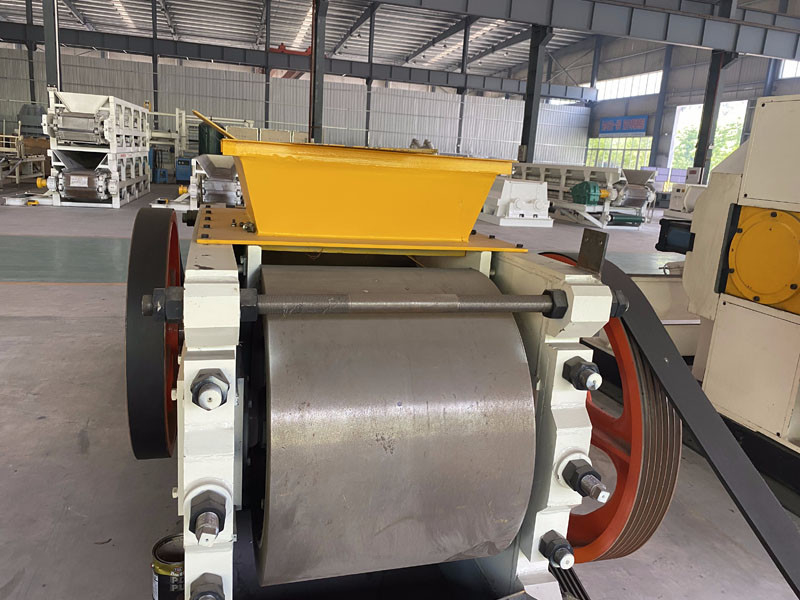

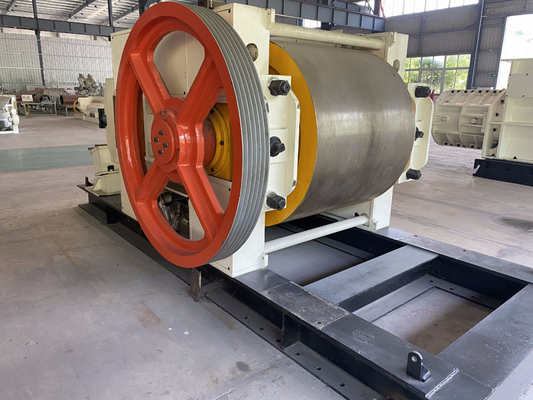

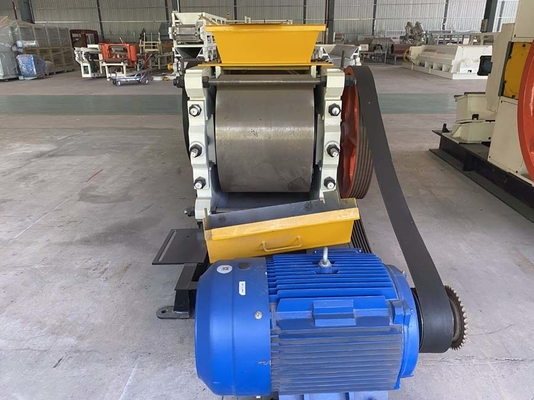

Roller Crusher
Double-roll crusher, a kind of mining machinery, is also called double-roll crusher. Mainly used for crushing ores. This machine has the advantages of small size, large crushing ratio (5-8), low noise, simple structure and convenient maintenance. It is suitable for coal, metallurgy, mining, chemical industry, building materials and other industries, and is more suitable for the crushing of raw coal (including gangue) in large coal mines or coal preparation plants.
A roller crusher that uses two oppositely rotating rollers to crush materials. It is composed of electric motor, bracket, fixed roller, movable roller and safety spring. Most of the roller surfaces are smooth. The bearing of the movable roller can be moved along the frame and supported by a strong safety spring. When a particularly hard object falls in, the bearing can be removed and the object can be spit out. Before normal operation, spacers should be used to adjust the gap between the two rollers to ensure the crushing ratio. Suitable for medium crushed sticky stone
Technical Parameters
| No. | Model | GS1080 | GS1210 | GS1412 |
| 1 | Size of roll(diameter * width) | 1000*800mm | 1200*1000mm | 1400*1200mm |
| 2 | Hardness of roll | ≥53HRC | ≥57HRC | ≥57HRC |
| 3 | Thickness of roll surface | ≥140mm | ≥160mm | ≥160mm |
| 4 | Space of roll | ＜1.5 | ＜1.5 | ＜1.5 |
| 5 | Power | 55+75(90)kw | ≤110+75kw | 160+90kw |
| 6 | Linear speed of roll | 18.415.5m/s | 18.415.5m/s | 18.415.5m/s |
| 7 | Production capacity | 35-50m³/h | 45-65m³/h | 60-80m³/h |
| 8 | Weight | 14,800kg | 23,000kg | 34,000kg |
| 9 | Dimension | 6,200*4,000*1,700mm | 6,800*4,460*2,860mm | 7,800*6,500*2,300mm |
Our service
Welcome to contact with BBT
BBT supply following machinery and project :
1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)
2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )
3. Brick kiln project ( hoffman kiln, tunnel kiln )
4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)
5. Kiln firing system ( coal / gas /oil combustion system ,control system )
6. Whole brick making project design and construction .
