Economical Soil Clay Fried Brick Stacking Machine with 100000-200000pcs/day Capacity

Large Image : Economical Soil Clay Fried Brick Stacking Machine with 100000-200000pcs/day Capacity

Product Details:

Place of Origin:	China
Brand Name:	BBT
Certification:	ISO9001
Model Number:	500kg stacker

Payment & Shipping Terms:

Minimum Order Quantity:	1 set brick stacking machine
Price:	0
Packaging Details:	Brick stacking machine by container sea shipment
Delivery Time:	30 days
Payment Terms:	L/C, T/T
Supply Ability:	10sets per year

Contact Now

Economical Soil Clay Fried Brick Stacking Machine with 100000-200000pcs/day Capacity

Description

Item:	New Model Economical Soil Clay Fried Brick Stacking Machine	Condition:	New
Type:	Brick ,block	Production Capacity:	100000-200000pcs/day
Weight:	500kg	Model:	Fully Automatic Stacker
Firing:	Tunnel Kiln With Natural Gas Firing System
Highlight:	Soil Clay Brick Stacking Machine , Soil Clay Fried Brick Stacking Machine , 200000pcs/day Clay Brick Stacking Machine

BBT New model economical soil clay fried brick stacking machine

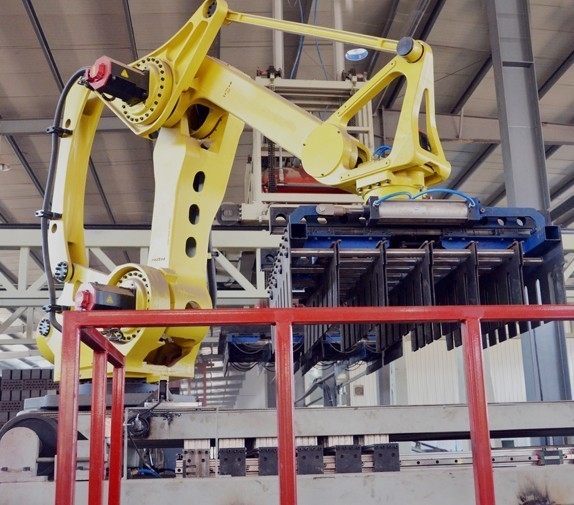

Economical Soil Clay Fried Brick Stacking Machine with 100000-200000pcs/day Capacity 0

Automatic stacking machine

The automatic blank stacking machine is mainly used for stacking the brick blanks sewn by the warp-knitting components on the blank conveying machine on the kiln car. The blank format can be determined according to user requirements. The working process is automatically controlled by PLC. The yard machine has a complete mechanical structure and electrical control system to ensure the stability and reliability of the yard.

Features of Automatic Stacking Machine:
1. The structure is reasonable and bears high reliability and convenient maintenance.
2. The horizontal transmission adopts synchronous toothed belt transmission, with linear guide rail pair, stable operation and high positioning accuracy.
3. The lifting system adopts hydraulic transmission system, sensor control, stable lifting action, and high positioning accuracy of brick stack layer and layer stacking.
4. The palletizing gripper adopts a pair of linear guide rails, matched with an optimized cylinder, and has high grasping and positioning accuracy without brick falling.
5. Collect centralized control, PLC programming and touch screen control, simple and convenient operation, easy to adjust various operating systems.
Technological Parameters

			No.
			Item
			Parameters

			1
			Action form
			Vertical multiple joint

			2
			Degree of freedom
			4

			3
			Load
			500kg

			4
			Repeated positioning accuracy
			±0.5mm

			5
			Actuation range
			S axis (Rotating)
			+180° ~ -180°

			L axis (Lower Arm)
			+90° ~ -45°

			U axis (Upper Arm)
)

			+15.5° ~ -120°

			T axis (Wrist Rotation)
			+360° ~ -360°

			6
			Maximum speed
			S axis
			1.48 rad/s (85°/s)

			L axis
			1.48 rad/s (85°/s)

			U axis
			1.48 rad/s (85°/s)

			T axis
			3.4 rad/s (195°/s)

			7
			The T-axis allows inertial torque
			200kg·㎡

			8
			Robot weight
			2300kg

			9
			Installation environment
			Temperature

			0~45 ℃

			10
			A conventional model weight
			Humidity
			20-80% RH (Non-condensate)

			Vibration acceleration
			4.9m/s2 (0.5G)

			Others
			No flammable or corrosive gas or liquid

			Do not splash water, oil, dust
Do not splash water, oil, dust

Do not splash water, oil, dust

			No electrical noise source nearby

			11
			Power capacity
			9.5kVa
