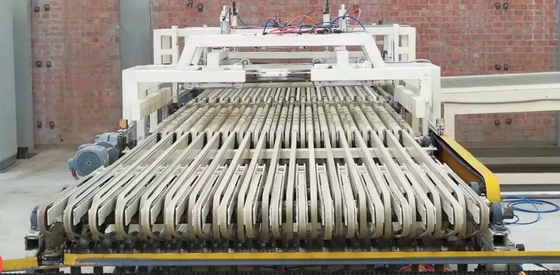

Automatic Billet Grouping & Dividing System for New Clay Brick Projects
The billet grouping system is key equipment in the brick production line, installed between the cutting and setting processes. It integrates conveying, turning, marshalling and arranging functions. With different auxiliary devices, it can work with robots and automatic setting machines.
The system adopts variable frequency control for stable operation. Brick separation is controlled mechanically and pneumatically to ensure accurate square array formation.
Multi-gripper brick turning ensures stable performance, no damage to bricks and high efficiency. It is equipped with a steel wire synchronous belt for longer service life and higher transmission precision.
Powerful visual handling software on its proprietary platform simplifies robot operation and provides full immunity to computer viruses.
Intelligent Billet Grouping & Sorting System for Clay Brick Making Projects
Technical parameters:
| No. |
Model |
BBT-BZ-01 |
| 1 |
Weight |
2,500kg |
| 2 |
Motor power |
5.5kw |
| 3 |
Air supply |
0.5MPA-0.7mpa 100L/min |
| 4 |
Size |
4,900*2,300*1,200mm |
Programming Bench
BBT-BZ-01 Programming Bench is designed to receive bricks conveyed by the separating belt conveyor, perform 90° brick diversion, and transfer bricks to the programming station for orderly arrangement.
Its main function is to convey and position separated bricks for automatic programming arrangement.
Key Components of the Programming Bench
Frame: Manufactured by welding national standard steel plates and steel pipes, featuring a sturdy, stable and reliable structure.
Moving Parts: The moving system consists of two sets of synchronous belts driven by three motors and one set of driving rollers, with vertical movement powered by cylinders.
Lifting Part: Driven by two cylinders, the lifting mechanism actuates the connecting rod assembly to accurately place bricks onto the designated positions of the synchronous belts.
Grouping and dividing billet code system for clay brick making new project automatic making system
