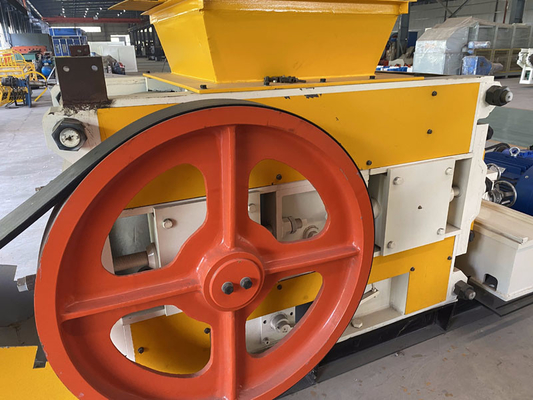

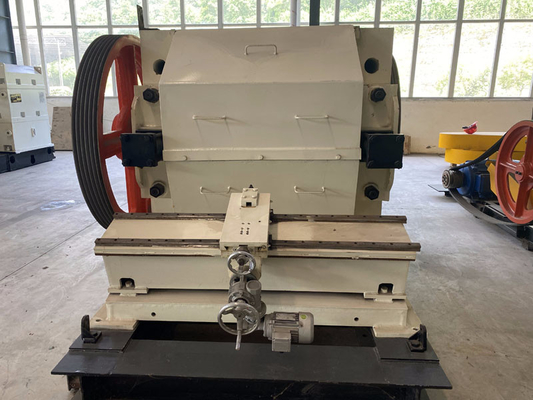

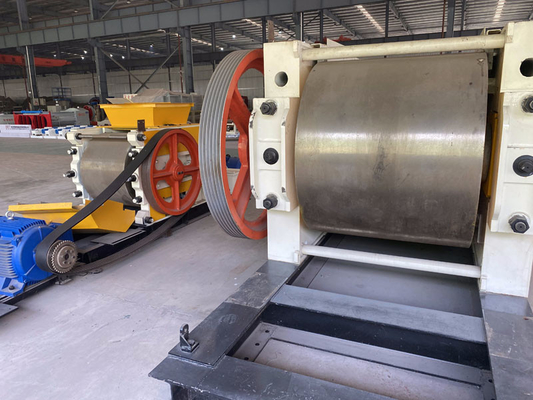

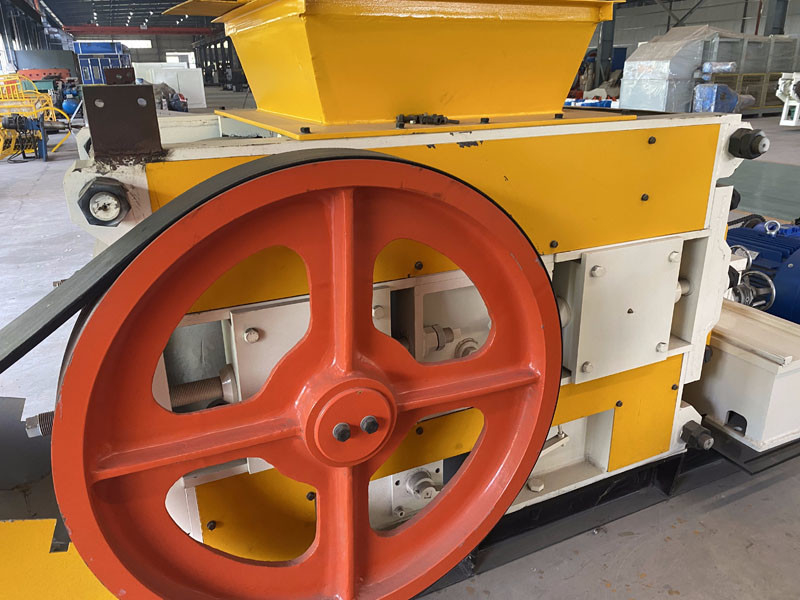

Fine Crusher Of Minerals Processing Equipment In Clay Brick Production Line
The material of roller ring is made of wear-resisting ductile iron and alloy steel, and is treated by quenching. Hardness respectively to HRC60 ° ~ 62 °, HRC48 ° ~ 55 °. The roller ring is equipped with a cloth dispenser, which can not only play the role of crushing on the whole width of the roller ring, improve the fineness of crushing and yield, but also make the roller ring wear evenly, effectively solve the phenomenon of roller hoarding in the middle of the trough. High fine grinding of roller machine reliable working, easy maintenance, low operating cost, row partical size is adjustable
The working principle of Fine Crusher
With a wedge or gasket between the two roller adjustment device, adjusting bolt, wedge at the top of the device when the adjusting bolt will wedge pulled up, wedge rolling activity to the top from the fixed wheel, namely two roller clearance greatens, discharging granularity, when the wedge downward, activities under the action of the roller in a compression spring two rounds of smaller clearance, discharge size smaller. Gasket device is by increasing the number or thickness of the gasket to adjust the size of the discharge particle, when the increase of the gasket two roller gap becomes larger, when the decrease of the gasket two roller gap becomes smaller, the discharge particle size becomes smaller. Finely crushed roll machine for raw material crushing and grinding equipment. The roller ring material is made of wear-resistant ductile iron and alloy steel, and has been quenched. Hardness up to HRC60° -62 °, HRC48° -55 °; The cloth distributor on the roller ring can not only play a crushing role on the whole width of the roller ring, improve the crushing fineness and output, but also make the roller ring uniform wear, effectively solve the phenomenon of the middle of the roller storage slot. Main products: double shaft mixer, hydraulic jacking machine, automatic plate falling machine, hammer crusher, automatic strip cutting - volume, impact crusher, double vacuum machine brick machine, double stage sieve bottom crusher, billet transport machine, double stage vacuum extruder, energy saving rotary dryer. This machine is a crushing and grinding equipment for raw materials. The roller ring material is made of wear-resistant ductile iron and alloy steel, and has been quenched. Hardness up to HRC60° -62 °, HRC48° -55 °; The cloth distributor on the roller ring can not only play a crushing role on the whole width of the roller ring, improve the crushing fineness and output, but also make the roller ring uniform wear, effectively solve the phenomenon of the middle of the roller storage slot.
1. Q: What is the Usage of Roller Grinders Roller Crushers?
A: Roller Grinders Roller crushers are designed for primary, secondary and tertiary grinding of brittle materials such as coal, clay, bauxite, and other minerals with similar properties in mining, power generation and many other industries.
2. Q: Any types of Roller Grinders Roller Crushers?
A: Primary crushing: ordinary rolling crushers to crusher materials size to 5mm around
Secondary and tertiary crushing: fine rolling crusher, roller mills, to crusher materials size less than 3mm.
3. Q: What is the Key Part of Roller Grinders Roller Crusher?
A: the key part of roller grinder roller crusher is crushing rollers.
4. Q: What is the Features of Roller Grinders Roller Crushers from BBT Clay, China?
A: better neutral and supporting strength;
crushing pressure can be adjusted to crush different materials;
rollers clearance can be adjusted to meet different needs of outlet size of materials;
scrapers are set to improve production capacity;
seperate reduction motors are set for each roll to easy maintenances;
rollers are making of wear-resistance steels with high strength.
5. Q: Why Choose Roller Crushers Roller Grinders from BBT Clay, China?
A: more than 15 years experience for brick making factory and Minerals processing Factory
own Technical R&D team to specific requirements for different machines
own manufacturing workshops.
more than 15 years experiences in overseas marketing.
6. Q: What is BBT Clay,China supply?
A: Key equipment in materials processing: Hammer Crusher, Double-toothed Roller Crusher, Wet Pan Mill, Roller Mill, Extruder-mixer
Fully automatic cutting, marshalling, stacking, loading and unloading Equipment(especially for brick making factory)
Process design of directing setting, twice setting technology for clay brick making factory
7. Q: How to vist BBT Clay, China?
Taking the plane to Xian Xianyang International Airport
Taking the high-speed rail to XiAn Bei Station.
Specifications of Fast Fine Rolling Crusher Double Primary Roller Grinder Roller Mills for Minerals Processing Equipment. Customized equipment are available.
| Item |
Unit |
GS8060 |
GS1080 |
GS1210 |
GS1412 |
| Productivity |
t/h |
30-50 |
55-75 |
70-90 |
90-120 |
| Roller dia.*width |
mm |
800*600 |
1,000*800 |
1,200*1,000 |
1,400*1,200 |
| Tangential speed |
m/sec |
14/12 |
14/12 |
14/12 |
14/12 |
| Power |
Kw |
37+30 |
55+75/90 |
110+75 |
160+90 |
| Weight |
Kg |
5,900 |
14,800 |
23,000 |
34,000 |
| Total length |
mm |
5,122 |
6,200 |
6,800 |
7,800 |
| Total width |
mm |
1,400 |
4,000 |
4,460 |
6,500 |
| Total Height |
mm |
1,430 |
1,700 |
2,860 |
2,300 |
Our service
Welcome to contact with BBT
BBT supply following machinery and project :
1. Full automatic clay brick making machinery ( belt conveyor , box feeder, roller crusher , fine grinder. double shaft mixer , wet pan mill ,brick cutter, brick extruder ,spare parts ...)
2. Brick drying system( small brick drying room, single layer brick dryer chamber , tunnel dryer, fast rapid dryer chamber )
3. Brick kiln project ( hoffman kiln, tunnel kiln )
4. Automatic brick making system ( brick setting/stacking machine, red bricks unloading machine, brick packaging machine ...)
5. Kiln firing system ( coal / gas /oil combustion system ,control system )
6. Whole brick making project design and construction .
