Automatic Unloading and Packaging System for Fired Bricks in Clay Brick Production Line with Tunnel Dryer，Tunnel Kiln

Automatic systems for clay fired bricks unloading and pacakaging in the production line of clay brick making, tunnel dryer and tunnel kiln:

1. Full systems included

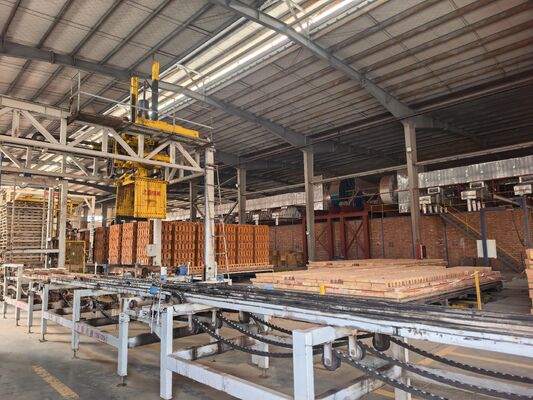

A. Automatic systems for clay fired bricks unloading from kiln cart by robots;

B. Programming systems for fired bricks before packaging;

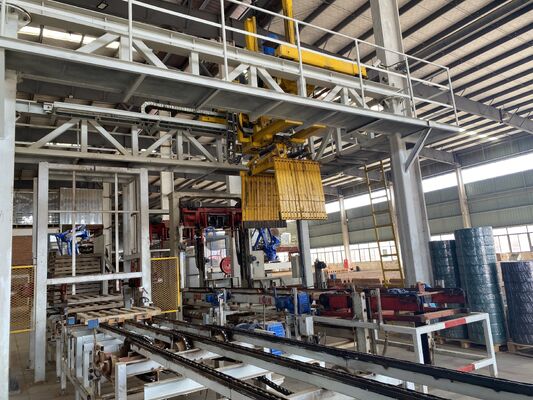

C. Robot setting systems for brick stacking before packaging;

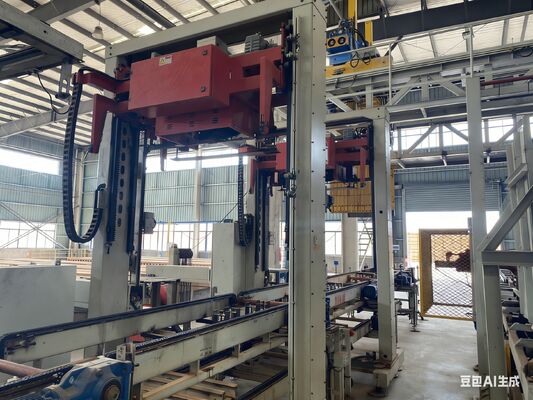

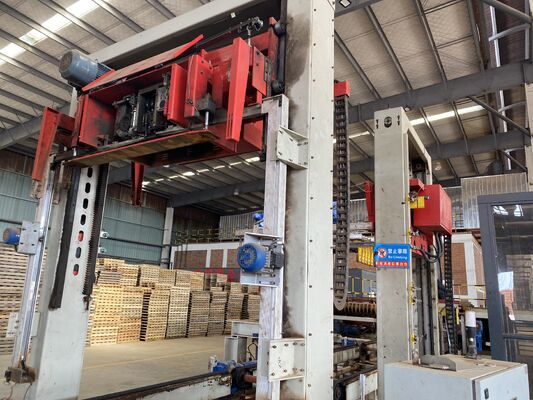

D. Horizontal strapping systems for brick stack;

E. Transfer bench systems;

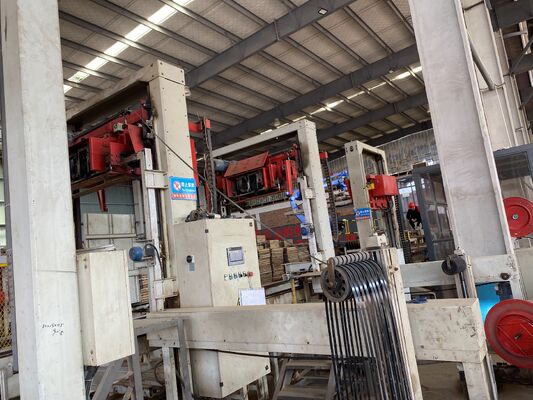

F. Vertical Strapping systems

G. Brick stacks systems after packaging

H. Empty kiln cart returning systems;

I. Electrical controlling systems and electrical cabinet

2. Brand and components in the automatic systems for clay fired bricks unloading and pacakaging

A. Robot’s brand can be Yaskawa, Fanuc, Kuka and other brands;

B. Electrical componets from ABB and Schneider;

C. Packaging head from OMS or other brand;

3. Designing, testing before ex-factory, shipment, installation, trial running, training operation and after sale-service

A. The designing for the auatomatic systems is according to the brick sizes, capacities and pallets’s sizes in the local;

B. For the full systems, empty running with electric testing will be done before ex-factory, SGS inpection is accepted for the testing;

C. For the full systems, they are dismantle after the testing and put into the 40 inch containers for shipment by sea or railway;

D. After all cargos arrived inside the customer’s workshop, engineers for installation of the machine and electrical systems, the customer needs to arrange workers for the co-work;

E. After all systems are installed, trial running will be done before mass production;

F. Training operation will be going on after the trial running, include the operation of the machine, robot seeting and daily maintaining;

G. After sale service is available for 7x24 hours online, video guiding and meeting in regular.

We also have other complete sets of automated clay brick making production line equipment to recommend to you:

BBT supply following clay brick production line machinery and equipment :

TCNL series of Chain full steel type box feeder

TWGD series of double shaft mixer

GS series of roller crusher

TRA series of double tooth roller crusher

TWJH series of front grid extruding mixer

TWPM series of wet pan mill

QTQG series of cutter

EV series of vacuum extruder

Robot setting machine

Brick machine spare parts

BBT provide full automatic clay brick making project design, construction and technical supporting.
